D-Serise----Pot Magnets With Screw Socket

D-Serise----Pot Magnets With Screw Socket

D-Serise----Pot Magnets With Screw Socket

Categories	Pot Magnets
Brand	Vector Magnets
FOB port	SND(Stamping - NdFeB - Screw Socket)LND(LatheMachining - NdFeB - Screw Socket)
Update Time	Apr 25,2024

Detail Information

LND(LatheMachining - NdFeB - Screw Socket)

SND(Stamping - NdFeB - Screw Socket)

LND(LatheMachining - NdFeB - Screw Socket)

These neodymium pot magnets have a screw socket into which you can screw hooks, eyelets, etc.

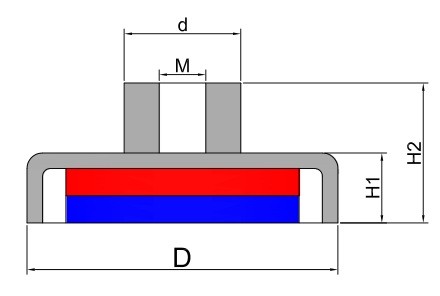

Model	D	D1	M	H	h2	Weight (g)	Breakaway (kg)
SND10	10	6	M3	12.6	5	4	1.5
SND12	12	6	M3	12.6	5	5	2
SND16	16	6.5	M4	13.5	5	9	8
SND20	20	6.5	M4	15	7	17	12
SND25	25	7.5	M5	17	8	28	25
SND32	32	10	M6	18	8	45	34
SND36	36	10	M6	18.5	8	55	50
SND42	42	10	M6	18.8	8.6	84	72
LND48	48	12	M8	24	11	130	81
LND55	55	12	M8	28	12	211	95
LND60	60	12	M8	28	15	263	160
LND70	70	17	M10	34	17	481	200
LND75	75	17	M10	35	18	515	270
LND80	80	17	M10	35	18	694	300
LND90	90	17	M10	35	18	854	360
LND120	120	22	M12	40	18	1440	480

Model	D	D1	M	H	h2	Weight (g)	Breakaway (kg)
SFD25	25	6.5	M4	15.6	7	22	4.5
SFD32	32	6.5	M4	15	7	31	8.5
SFD36	36	6.5	M4	16	8	45	11
SFD40	40	7.5	M5	18	8	55	13
SFD47	47	7.5	M5	18.5	9	84	18
SFD50	50	7.5	M5	20	10	105	23
SFD57	57	7.5	M5	20	10.5	144	29
SFD63	63	10	M6	25.5	14	215	36
SFD80	80	10	M8	30.5	18	421	62

Model	D	D1	M	H	h2	Weight (g)	Breakaway (kg)
LND6	6	4.5	3	10.5	4.7	2	0.5
LND8	8	4.5	3	11.5	4.7	3	1
LND10	10	6	3	12.5	5	4	1.5
LND12	12	6	3	12.5	5	5	2
LND14	14	6.5	4	12.5	4.5	7	5
LND16	16	6.5	4	13.5	5.2	9	8
LND18	18	6.5	4	13.8	6	13	10
LND20	20	6.5	4	15	7.2	17	12
LND22	22	6.5	4	16.2	6.9	21	18
LND25	25	7.5	5	17	7.7	28	22
LND28	28	7.5	5	15.7	6.4	31	26
LND30	30	7.5	5	16.6	6.4	36	29
LND32	32	10	6	18	7.8	45	34
LND34	34	10	6	17.5	7.3	52	37
LND36	36	10	6	18.5	7.6	55	41
LND38	38	10	6	18.3	7.4	68	46
LND40	40	10	6	18.8	7.8	78	51
LND42	42	10	6	18.8	8.8	84	68
LND45	45	12	8	19.6	8.7	103	75
LND48	48	12	8	24	10.8	130	78
LND50	50	12	8	25.6	10.7	153	91
LND55	55	12	8	29.2	12	211	102
LND60	60	12	8	28	15	263	120
LND65	65	12	8	32.2	14.9	358	137
LND70	70	17	10	34.2	16.9	481	153
LND75	75	17	10	35	17.8	515	178
LND80	80	17	10	36.2	19	694	250
LND90	90	17	10	35.2	18	854	340
LND100	100	22	12	35.2	18	1088	380
LND110	110	22	12	35.2	18	1309	420
LND120	120	23	12	40	18	1440	480
